Trend TR46x1/2TC Intumescent Door Cutter Set – 20 mm × 40 mm

Description

• Intumescent strip routing cutter
• 40 mm cutter diameter
• 1/2-inch shank size
• Fire door frame application

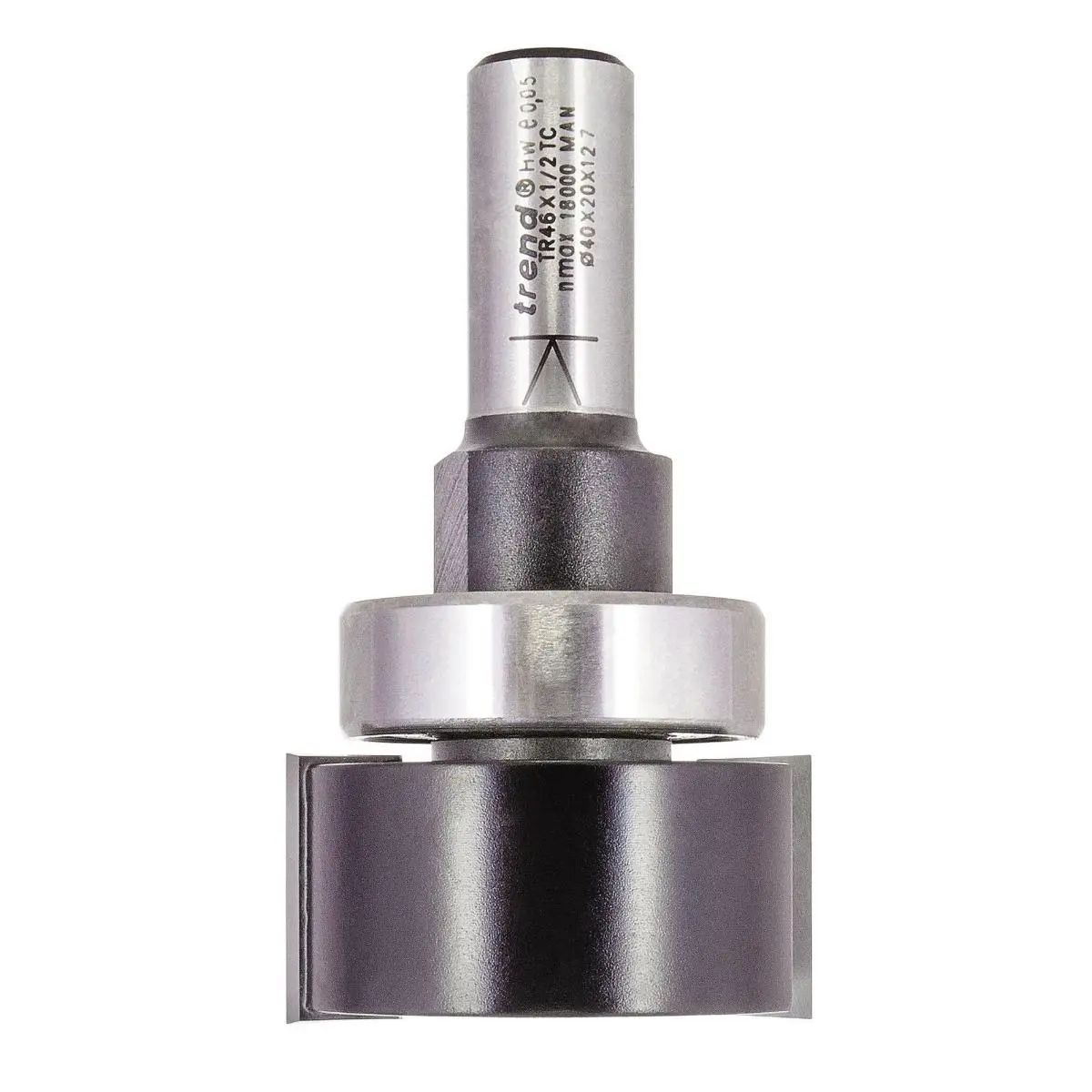

Trend TR46X1/2TC Intumescent Cutter Set 20mm x 40mm

The Trend TR46X1/2TC Intumescent Cutter Set is a specialised router cutter designed for cutting recesses for intumescent strips in door frames and other fire-rated joinery. It produces a neat 20 mm wide groove that can house 4 mm intumescent material, helping create effective fire and smoke seals in doors and openings. The cutter is ideal for carpenters, joiners, and installers working on fire-rated doors and frames where accurate intumescent strip placement is essential.

Features:

Equipped with high-quality carbide tips that maintain sharpness
It’s suited to routing precise rebates for fire protection components.
Designed specifically for cutting slots in door edges and frames for fire-protection strips.
Features a 32mm diameter ball bearing ensuring the correct depth and width without the need for a side fence.
Engineered to cut a 20mm wide slot at a fixed 4mm depth to ensure intumescent strips fit perfectly flush.
Includes a ‘K’ Mark on the shank to indicate the correct insertion depth, ensuring a secure and safe grip within the router collet.

Product Specification:

Part Number: TR46X1/2TC
Barcode: 5027654046784
Diameter: 40 mm
Cutting Length: 20 mm
Bearing Diameter: 32 mm
Groove Width: 4 mm
Overall Length: 70.8 mm
Shank Diameter: 1/2 inch
Fire check: 60 minutes

**images for illustrative purposes only – please refer to description and specification for full details of product**
