Description
- Heavy-duty steel frame
- 2-speed hydraulic pump
- 200mm lateral travel
- Integrated pressure gauge
- V-blocks for added versatility

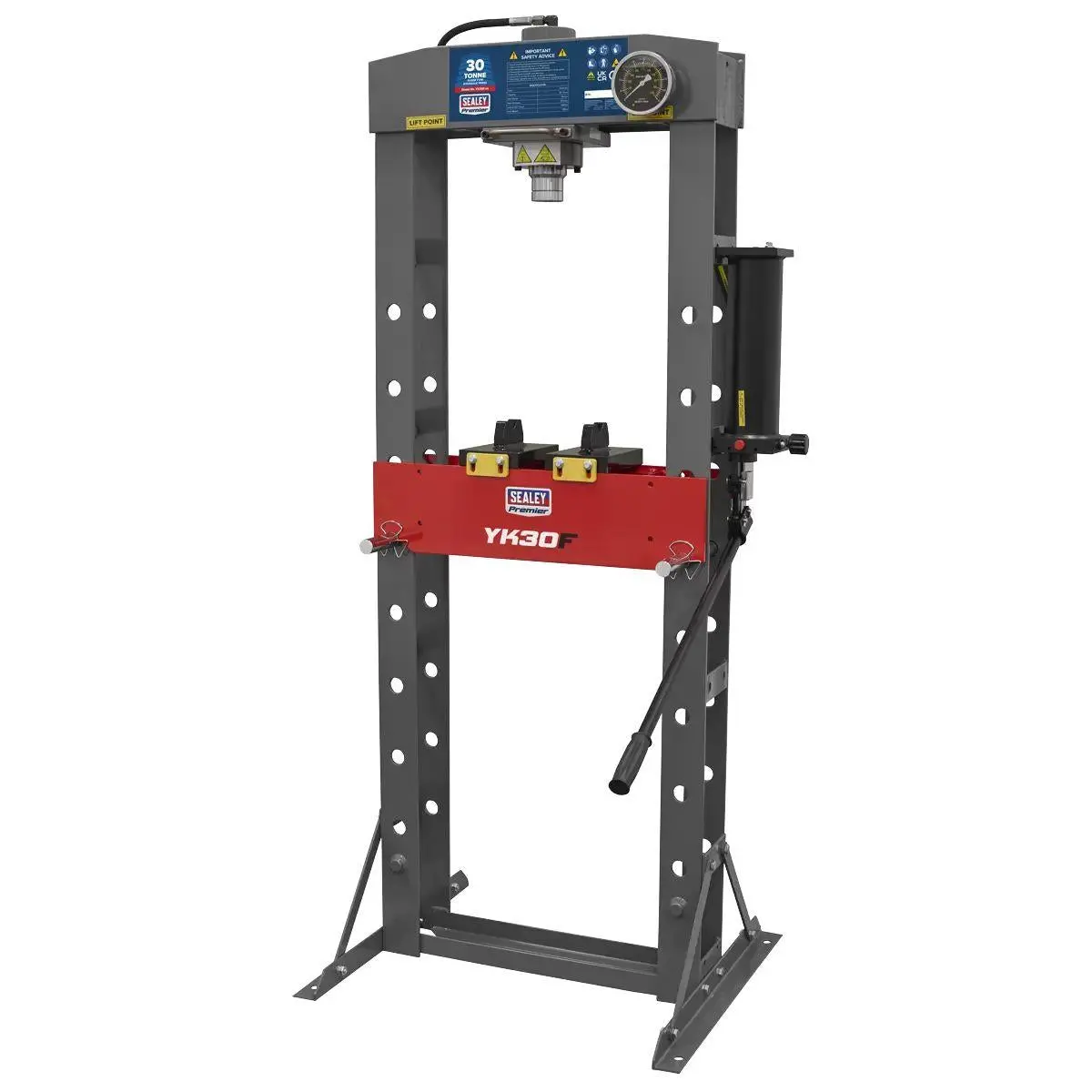

Sealey YK30F Premier Hydraulic Floor Type Press 30 Tonne
This heavy-duty hydraulic press features a steel frame construction with a 2-speed hydraulic pump unit for maximum durability and efficiency. The lateral sliding adjustment offers 200mm of travel for off-centre pressing, while the integrated pressure gauge ensures precision. Includes flat pressing plate and V-blocks for versatility.
Features:
HEAVY-DUTY: Steel frame construction with 2-speed hydraulic pump unit.
LATERAL SLIDING ADJUSTMENT: Sliding hydraulic ram assembly gives 200mm of lateral travel for off-centre pressing applications.
INTEGRATED GAUGE: Frame head fitted with ram pressure gauge.
ACCESSORIES: Supplied with flat pressing plate/V-blocks.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Comes With:
1 x YK30F Premier Hydraulic Floor Type Press 30 Tonne
Product Specification:
Part number: YK30F
Barcode number: 5054630566271
Bench or Floor Mounting: Floor
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 190mm
Maximum Height – Ram to Table: 1035mm
Minimum Height – Ram to Table: 55mm
Optional Accessories: YKSG20 – Safety Guard, YKPP8 – Press Pin Set
Overall Height: 1775mm
Overall Width: 835mm
Ram Diameter: Ø70mm
Ram Stroke: 150mm
Table Aperture: 152mm
Type: Hydraulic
Nett Weight: 130kg
Working Table Depth: 172mm
Working Table Width: 650mm
Operating Table Width: 490mm
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
