Description
- Heavy-duty steel frame
- Air motor hydraulic pump
- 2-speed manual control
- 190mm lateral ram travel
- Ram pressure gauge

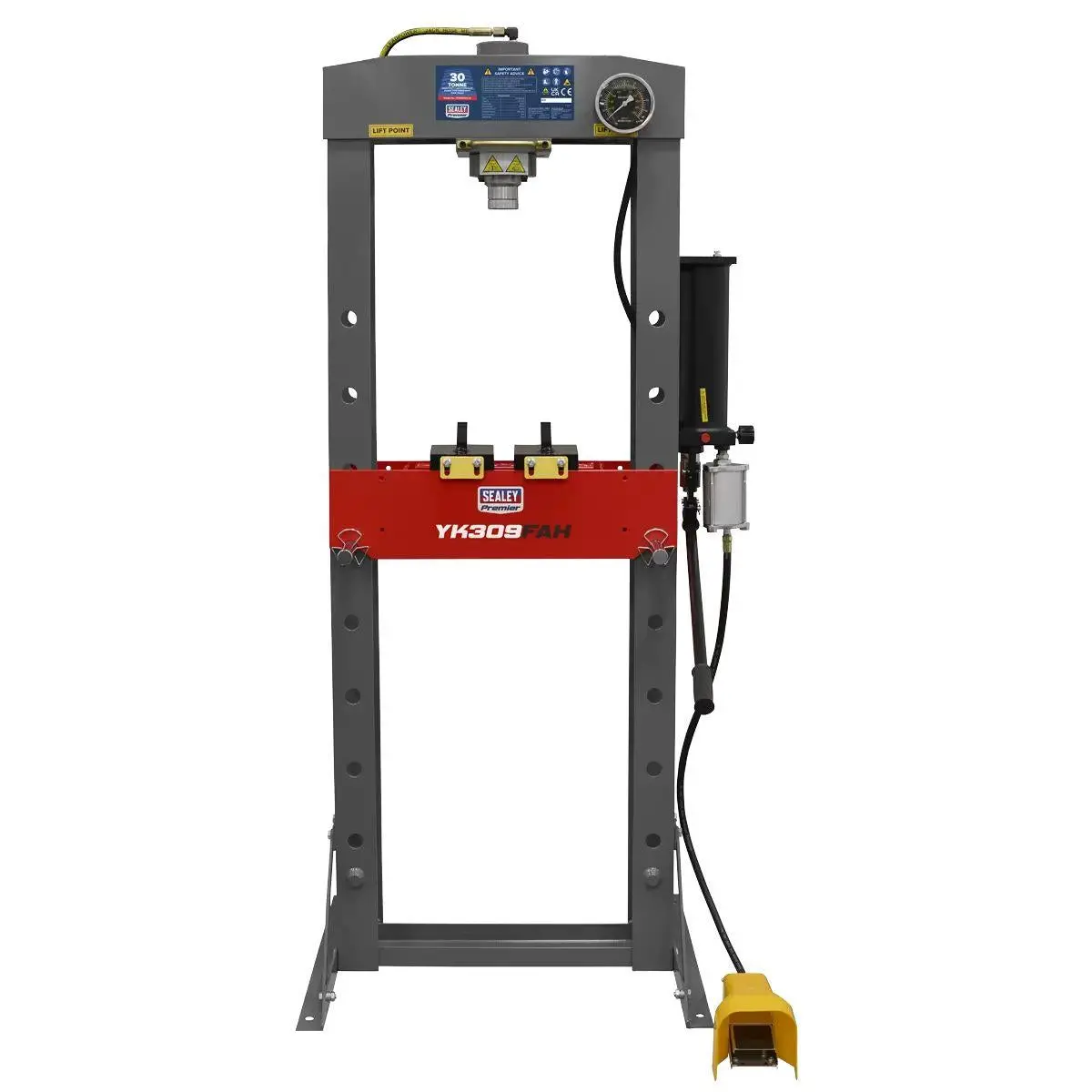

Sealey YK309FAH Premier Heavy-Duty Air/Hydraulic Floor Type Press with Foot Pedal 30 Tonne
This heavy-duty press features a strong steel frame with a side-mounted air motor that powers the hydraulic pump for reliable performance. It offers 2-speed manual operation for fast approach and controlled pressing. The sliding hydraulic ram provides 190mm lateral travel for off-centre jobs, and a pressure gauge ensures accurate pressing. Includes flat pressing plate and V-blocks.
Features:
STRENGTH AND CONTROL: Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
2-SPEED MANUAL OPERATION: Rapid decent and then slow and controlled when the work piece is met.
LATERAL TRAVEL: Sliding hydraulic ram assembly giving 190mm of lateral travel for off-centre pressing applications.
ACCURATE PRESSING: Fitted with ram pressure gauge.
TABLE ACCESSORIES: Supplied with flat pressing plate/V-blocks.
Comes With:
1 x YK309FAH Premier Heavy-Duty Air/Hydraulic Floor Type Press with Foot Pedal 30 Tonne
Product Specification:
Part number: YK309FAH
Barcode number: 5054630566288
Air Consumption: 9cfm
Bench or Floor Mounting: Floor
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 190mm
Maximum Height Ram to Table: 1035mm
Minimum Height Ram to Table: 55mm
Optional Accessories: YKSG20 – Safety Guard, YKPP8 – Press Pin Set
Overall Height: 1775mm
Overall Width: 835mm
Ram Diameter: Ø70mm
Ram Stroke: 150mm
Table Aperture: 152mm
Type: Air/Hydraulic
Nett Weight: 132kg
Working Pressure: 108-123psi
Working Table Depth: 172mm
Working Table Width: 650mm
Operating Table Width: 490mm
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
