Description

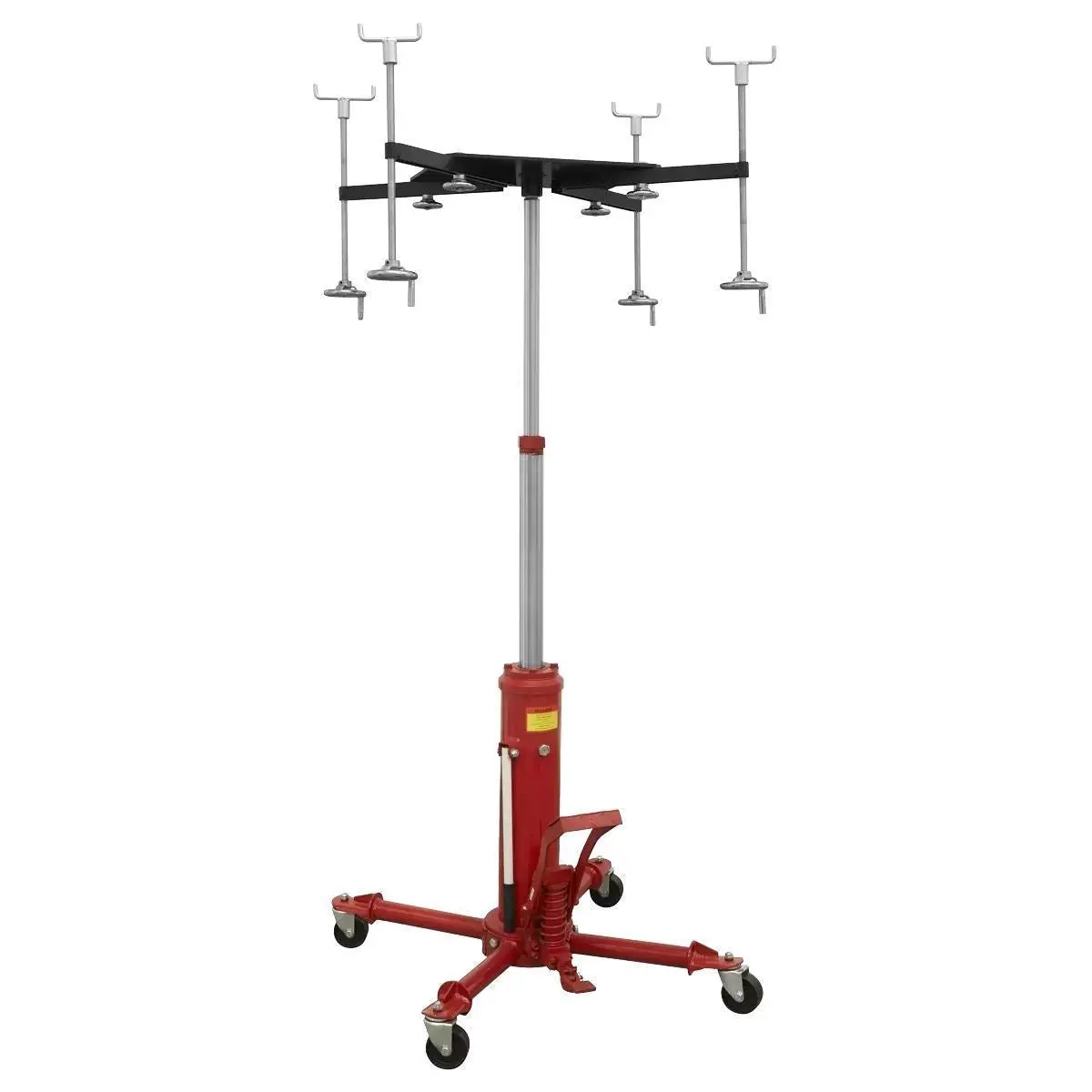

Sealey SFC500COMBO Subframe Cradle and 500kg Transmission Jack Combo
Features:
TELESCOPIC RAM – a two-stage ram reduces the clearance.
HIGH SPEED LIFT – quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
FOOT PEDAL OPERATION – keeping hands free for fixings and adjustments.
SAFE – Spring loaded dead man’s safety release control reduces the risk of inadvertent lowering.
HIGHLY MANOEUVRABLE – large, smooth running castors, make positioning quick and easy.
VERSATILE ADAPTOR – Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications.
WILL ASSIST – in the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads.
LABOUR SAVING DESIGN – allows many jobs to be carried out by one person.
EASY ASSEMBLY – the adaptor can be fitted and removed from the transmission jack with ease as required.
Specification:
Part Number: SFC500COMBO
Barcode: 5054630284083
Brand: Sealey
Base Size: 1000 x 1000mm
Capacity: 500TTJ – 500kg and SFC01 – 450kg
Fixed/Adjustable Saddle: Adjustable
Maximum Saddle Height: 1875mm
Minimum Saddle Height: 890mm
Nett Weight: 95.5kg
Optional Accessories: N/A
Pump Strokes to Maximum Height: N/A
Ram Extensions: 2
Saddle Adjustment – Left-to-Right: 65mm
Saddle Tilt – Backward: 22°
Saddle Tilt – Forward: 28°
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
