Description
- Heavy-duty 3-phase compressor
- Triple cylinder pump system
- 3hp motor maximizes performance
- Easy-to-use bespoke control panel

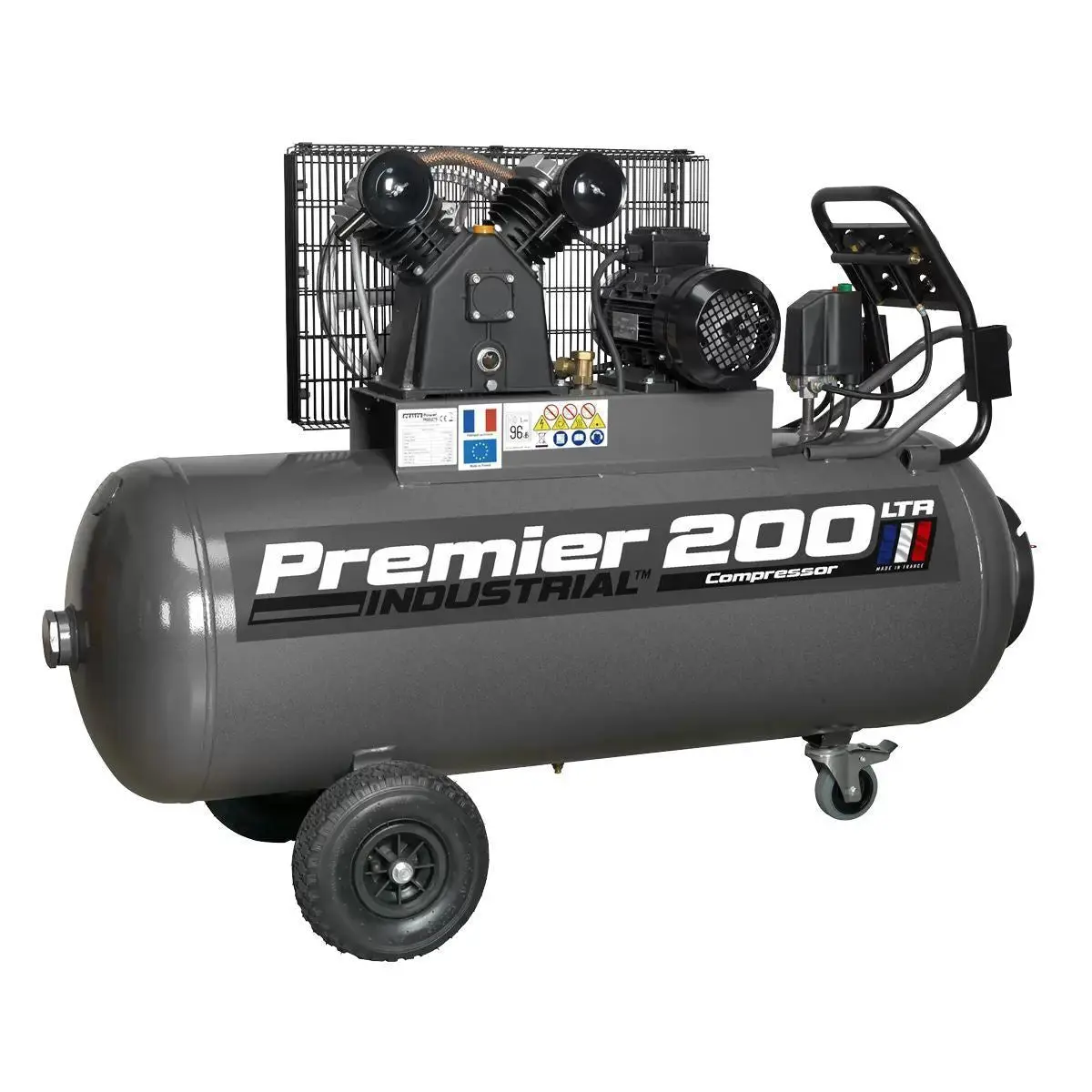

Sealey SAC3203B3PH 200L Belt Drive Compressor with Front Control Panel 415V/32A
Features:
Heavy-duty 3-phase compressor suitable for the professional workshop.
Triple cylinder pump system coupled with a 3hp motor maximizes performance to keep running costs low compared to single stage, single phase models.
Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
Features an easy-to-use bespoke control panel with two outlets, one regulated and one direct.
Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Heavy-duty pneumatic wheels with single front lockable castor for easy manoeuvrability.
Supplied with hose reel to keep your workspace tidy.
Full CE certification, test certificates and operating/maintenance manual.
Includes a drain valve for easy release of condensed water build-up in the tank.
Specification:
Part No: SAC3203B3PH
Barcode: 5054630247187
Air Displacement cfm(L/min): 13.4(380)
Maximum Free Air Delivery cfm(L/min): 10.9(310)
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 32A
Oil Capacity: 1L
Motor Output: 3hp
Nett Weight: 103kg
Outlet: Hi-Flow Quick Release Coupling
Phase: 3ph
Receiver Capacity: 200L
Size (W x D x H): 1410 x 600 x 1020mm
Speed: 1243rpm
Supply: 415V/32A
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
