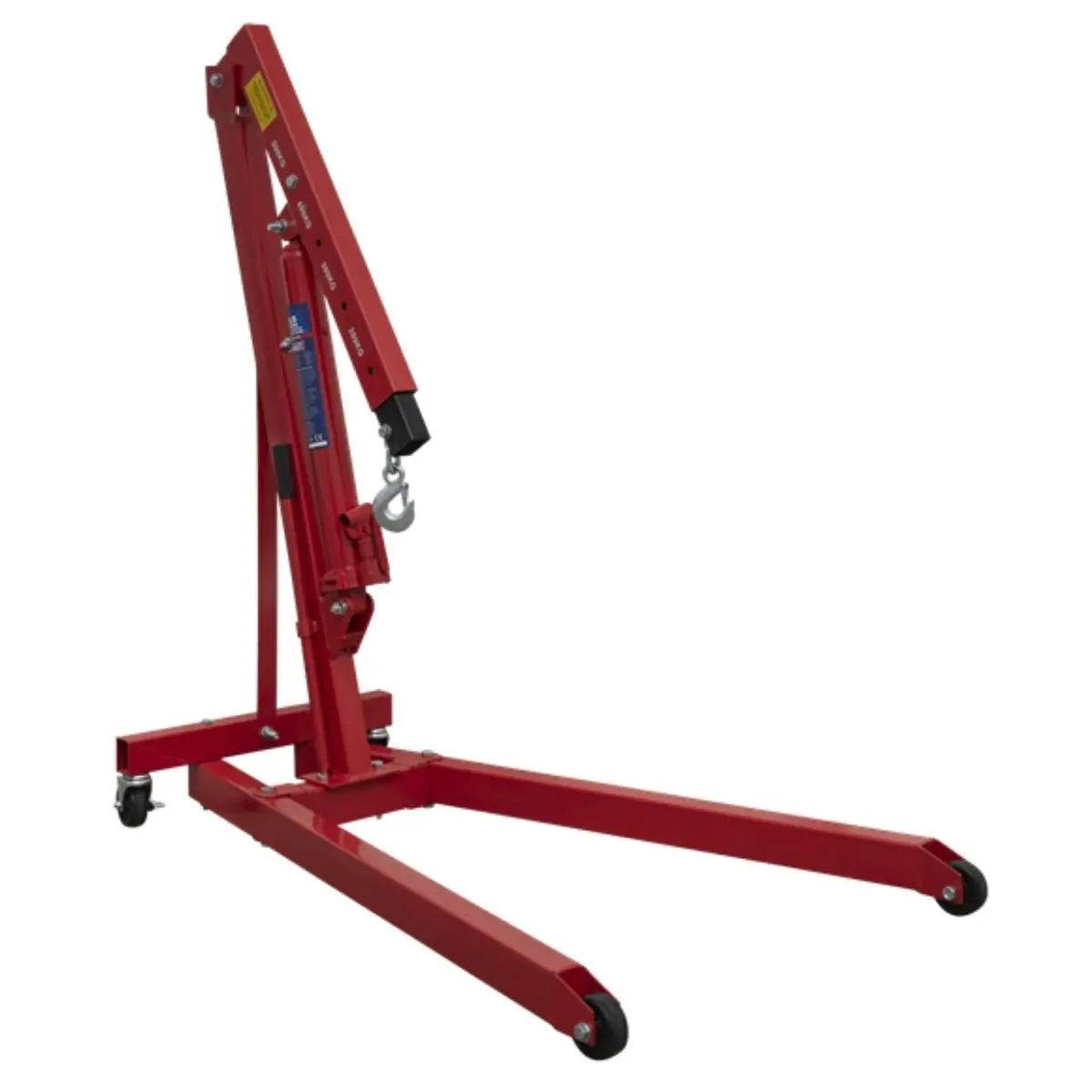

Sealey PH5 500kg Low-Profile Engine Crane

Description

Sealey PH5 0.5 Tonne Low Profile Engine Crane

Features:

Low entry engine crane with a height of only 100mm at the wheels.
Weighs only 37kg so is extremely lightweight and manoeuvrable.
Heavy-duty castors and pump access from side, for safe handling of loads.
Delivered in knock-down form to reduce freight costs, some self-assembly required.

Specification:

Part Number: PH5
Barcode: 5054511789935
Height Jib Down: 1330mm
Height Legs Folded: n/a
Height of Frame: 100mm
Length Legs Extended: n/a
Length of Jib Position 1: 750mm
Length of Jib Position 2: 860mm
Length of Jib Position 3: 980mm
Length of Jib Position 4: 1100mm
Length of Jib Position 5: n/a
Length: 1210mm
Lifting Capacity in Position 1: 500kg
Lifting Capacity in Position 2: 400kg
Lifting Capacity in Position 3: 300kg
Lifting Capacity in Position 4: 200kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1950mm
Max. Lift Ht at Jib Position 2: 2050mm
Max. Lift Ht at Jib Position 3: 2150mm
Max. Lift Ht at Jib Position 4: 2250mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 37kg
Rear Width: 550mm
Width Front Frame: 800mm
Width Inside Front Frame: 700mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
