Description

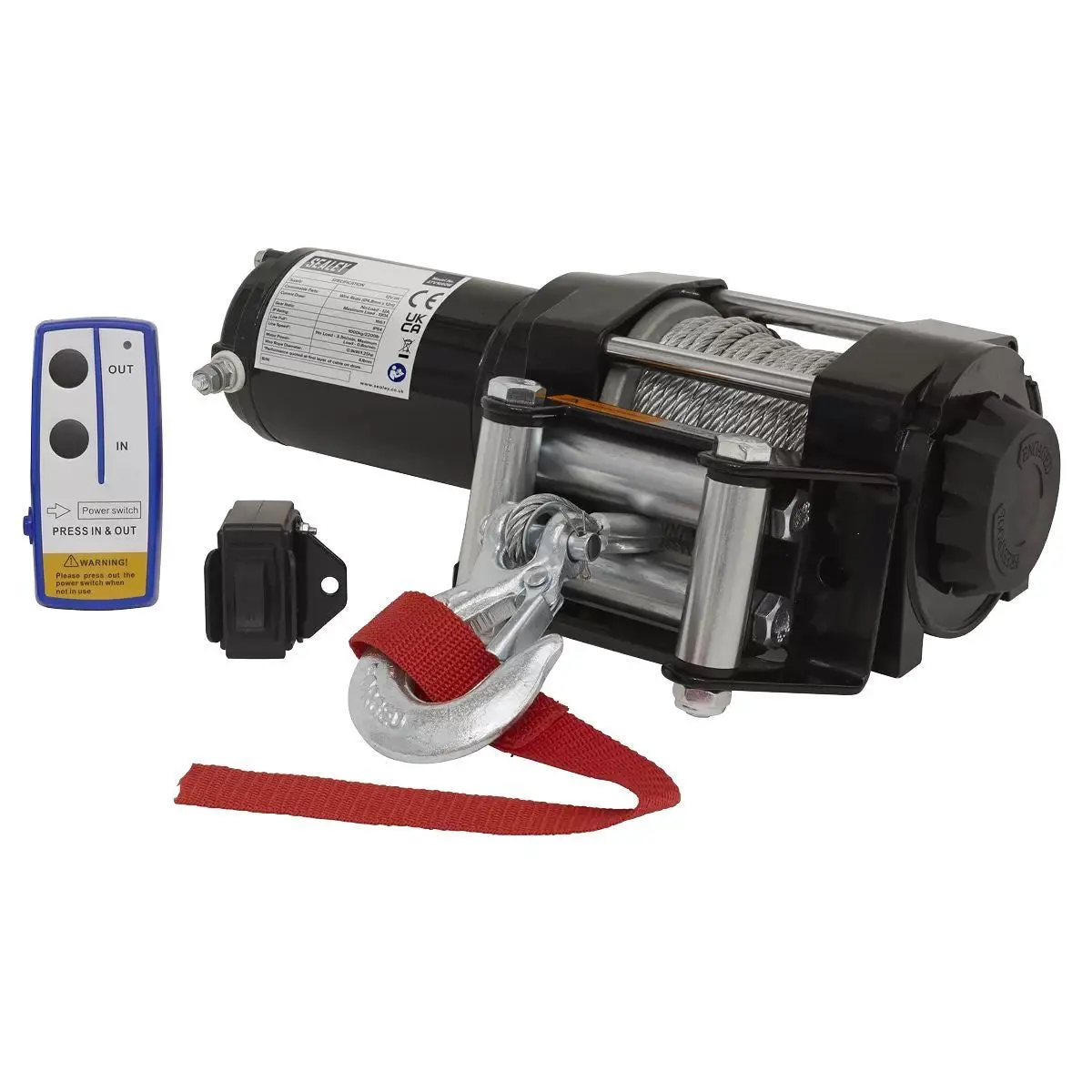

Sealey ATV1000W 12V ATV Winch 1000kg Line Pull
Features:
ATV – Perfect for mounting an ATV.
3-STAGE – Use a 3-Stage planetary gearing mechanism.
12 VOLT – 1.2hp Permanent magnet DC powered motor.
CLUTCH – Features a pull and turn clutch.
4-WAY – Roller fairlead for even distribution of cable onto the drum.
WIRELESS – Remote included for use at safe distances.
Specification:
Part no: ATV1000W
Barcode: 5054630071256
Consumable Parts: Wire Rope (Ø4.8mm x 12m)
Current Draw: No-Load – 12A, Maximum Load – 118A
Gear Ratio: 166:1
Line Pull*: 1000kg/2200lb
Line Speed*: No Load – 3.3m/min, Maximum Load – 0.8m/min
Motor Power: 0.9kW/1.25hp
Nett Weight: 8.5kg
Note: *Performance quoted at first layer of cable on drum.
Supply: 12V
Wire Rope Diameter: Ø4.8mm Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
