Rothenberger Romax Compact III 18V press jaw set for M15, M22, and M28 copper and stainless steel pipes — complete with 2.0Ah Li-ion battery, fast charger, and durable carry case (SKU 1000004333)

Description

• Versatile Pressing Jaws
• Efficient Pressing Power
• Constant Force Technology
• Real-Time Data Acquisition
• Compact and Ergonomic Design

Rothenberger Romax Compact III Press Jaw Set M 15-22-28mm 18V with 1 x 2.0Ah Battery, Charger & Carry Case 1000004333

The ROMAX Compact III AMPShare includes pressing jaws of different contours in various sizes. The electro-hydraulic, radial pressing machine ROMAX COMPACT III AMPShare is ideally suited for system-compliant pressing of fittings up to 35 mm (metal) or 40mm (plastic), even in constrained positions. The ROMAX COMPACT III AMPShare presses fittings with a piston force of 19 kN and a press cycle of 3 seconds. Constant pressing force over the complete pressing cycle is guaranteed by Constant Force Technology (CFT). Real-time data acquisition of relevant machine parameters and convenient creation of press protocols directly on site via ROTHENBERGER App by CONNECTIVITY. The optimized compact design and perfectly balanced weight make installation work over longer stages a breeze.

Features:

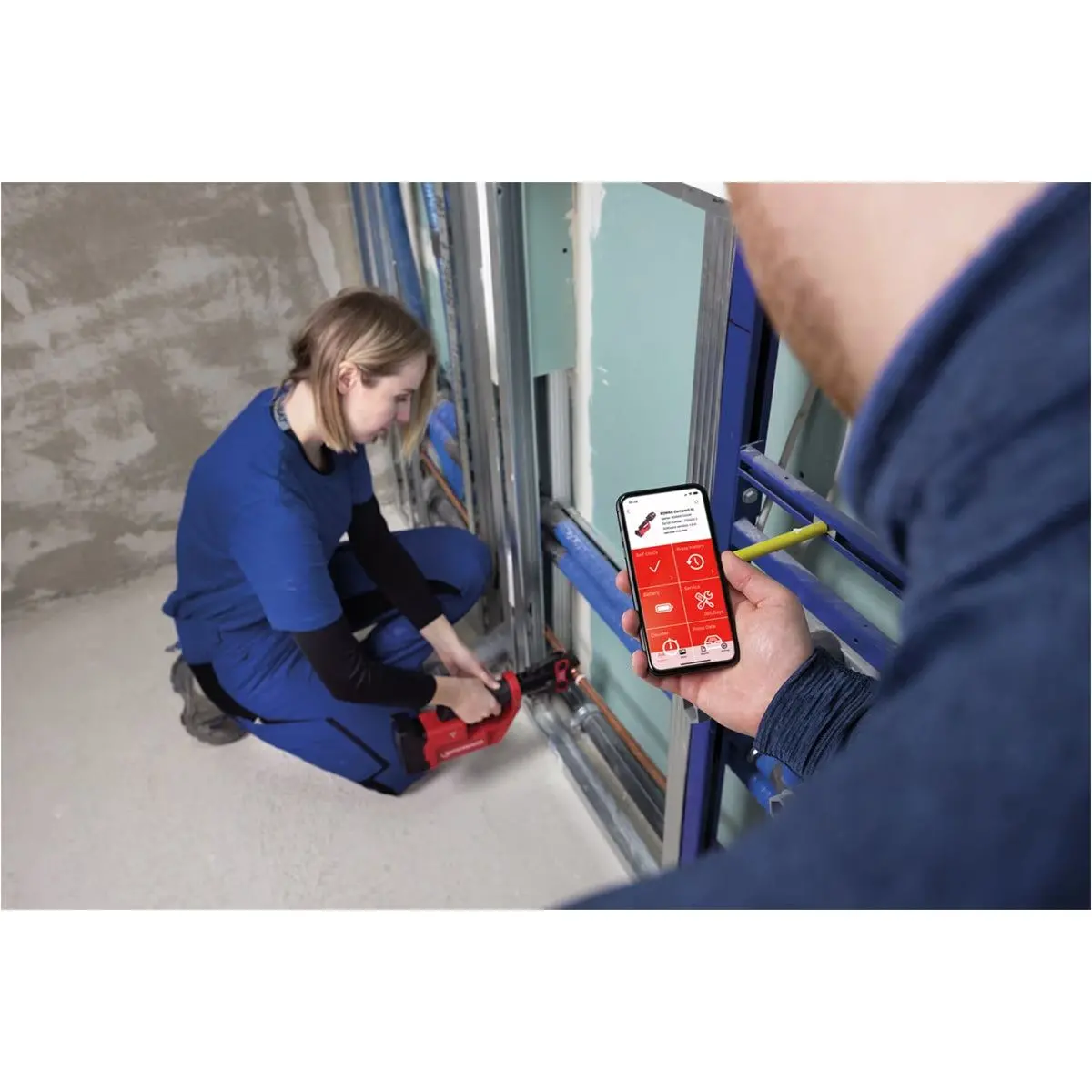

Connected: Pressing data acquisition in real time via ROTHENBERGER App.
Fast: 3-second pressing by means of effective pressure build-up.
Strong: Presses fittings up to Ø 35 mm (metal) / Ø 40 mm (plastic)
Comfortable: Perfectly balanced center of gravity allows for comfortable work.
Handy: Only 2.5 kg weight distributed over 34 cm length.

Comes With:

1 x Rothenberger Romax Compact 18V III Press Jaw Set M 15-22-28mm 1000004333

Product Specification:

Part no: 1000004333
Barcode: 4004625556368
Voltage: 18 V
Working area diameter mm: 12 – 40 mm
Working area Temperature: -10 – 60 °C
Battery number: 1 Piece
Battery system: Li-Ion / Li-Po battery (rechargeable)
Battery type: Rechargeable
Press jaw system: Press jaw Compact
System battery: AMPShare
Type battery: Li-Power
Piston force: 19 kN
Time press cycle with unit of measurement: 3 sec
Capacity battery with unit of measurement: 2 Ah
Net weight with unit of measure: 9.260 kg
Gross weight with unit of measure: 9,625 kg
Packaging Length with unit of measurement: 400,000 mm
Packaging Width with unit of measurement: 400,000 mm
Shipping weight with unit of measure: 9,625 kg
Packaging height with unit of measurement: 145,000 mm

**images for illustrative purposes only – please refer to description and specification for full details of product**
