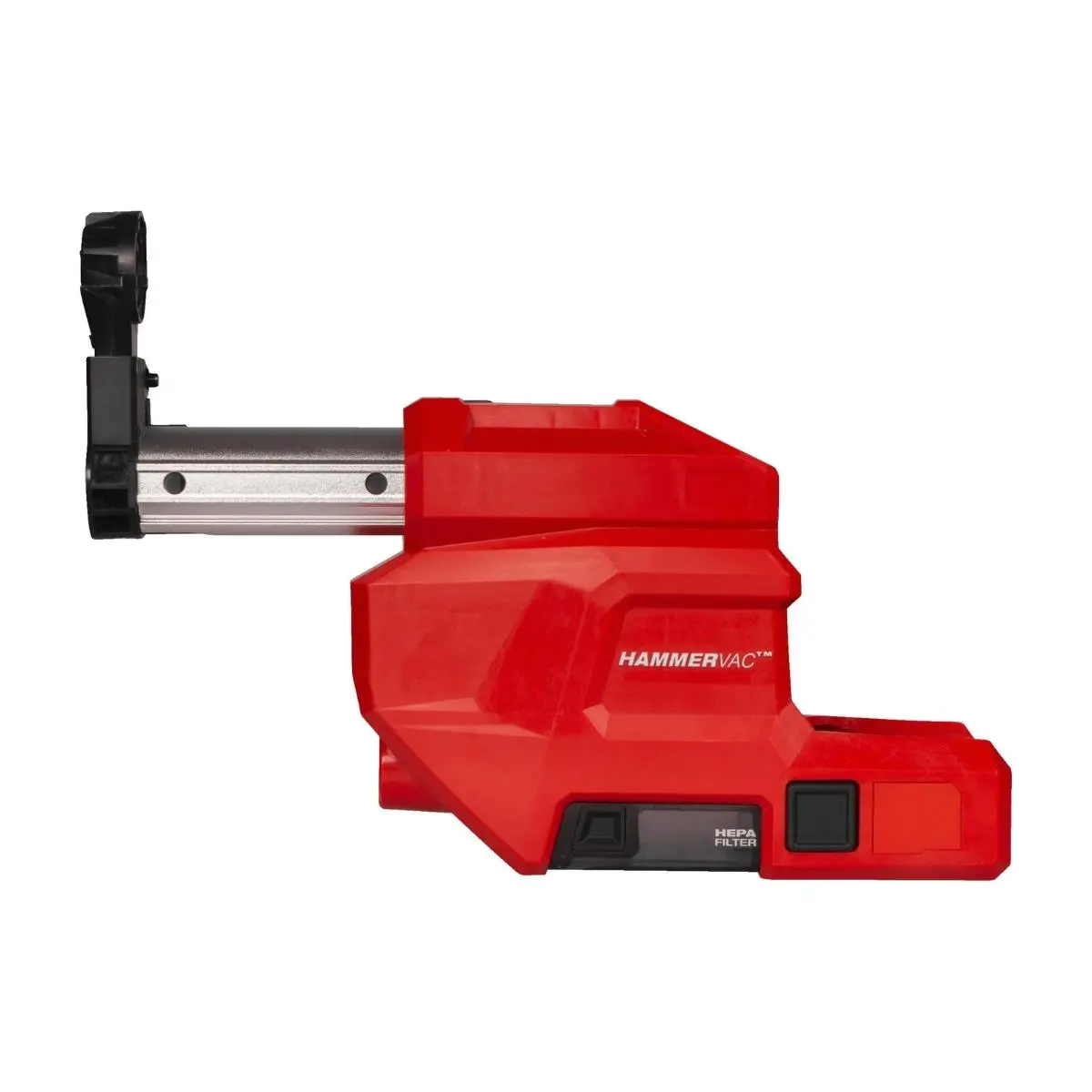

Milwaukee M18 FCDDEXL-0 Compact Dedicated Dust Extraction System for M18 FUEL 26 mm SDS+ Rotary Hammers (Model 4933478507)

Description

• Compact SDS+ dust extractor
• Automatic tool-triggered operation
• Adjustable depth drilling gauge
• LED light for visibility

Milwaukee M18FCDDEXL-0 Compact Dedicated Dust Extraction for M18 Fuel 26mm SDS+ Hammers 4933478507

The Milwaukee M18FCDDEXL-0 Compact Dedicated Dust Extraction unit is designed to efficiently capture dust at the source during drilling applications, improving safety and cleanliness on the jobsite. It features automatic operation linked to the tool trigger, ensuring seamless start and stop functionality. Equipped with a high-efficiency HEPA filter, it captures fine dust particles for a healthier working environment. The unit includes interchangeable nozzles and an adjustable depth gauge for accurate and versatile drilling. Compatible with selected M18 FUEL SDS+ hammers, it also features integrated LED lighting for better visibility in low-light conditions.

Features:

Designed to collect dust efficiently with automatic operation from the tools on/ off trigger switch
The highly efficient HEPA filter collects 99.97% of airborne particles down to 0.3 microns
Manual filter cleaning mechanism increases the air flow efficiency as well as the filter life time
Exchangeable nozzles to adjust to the different drilling diameters. Supplied with 2 nozzle sizes 1x up to ⌀16 mm, 1x up to ⌀26 mm, which can be quickly switched thanks to the quick lock mechanism
Adjustable depth gauge with easily and precisely adjustment buttons for accurate hole depths
Bright LED workspace illumination
Compatible with M18 FH, M18 FHX, M18 ONEFH and M18 ONEFHX hammers

Comes With:

2 x Replacement brush rings
2 x Exchangeable Nozzle
1 x Adjustable depth gauge

Product Specification:

Part Number: 4933478507
Barcode: 4058546347000
Max. drill bit diameter (mm): 26
Max. drill bit length (mm): 200
Max. drilling depth (mm): 96
Stroke length (mm): 96
Weight (kg): 1.4

**images for illustrative purposes only – please refer to description and specification for full details of product**
