Description

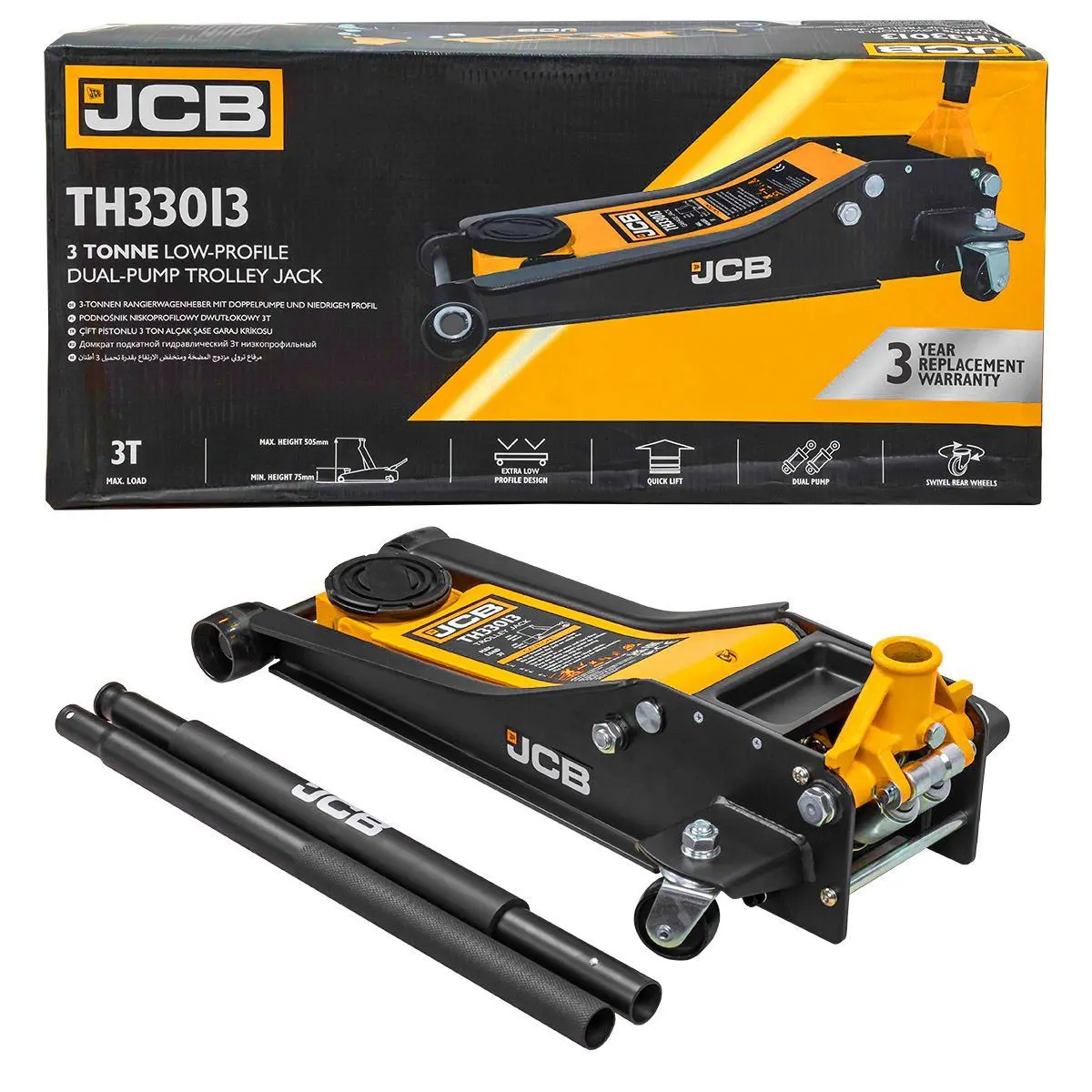

JCB TH33013 3 Tonne Low-Profile Double-Pump Trolley Jack
The JCB-TH33013 is a robust, low-profile and double-pump hydraulic trolley jack designed to offer a maximum lifting capacity of up to 3 tonnes in weight. Constructed with a high quality and heavy-duty steel frame, the JCB-TH33013 is capable of lifting SUVs, cars, light commercial vehicles and any other vehicle which requires high ground clearance up to 505mm in height. The JCB-TH33013’s chassis utilises an extra low-profile design, which allows the trolley jack to reach lower clearances, particularly useful for sports cars or vehicles with reduced ground clearance. Thanks to its integrated double-piston mechanism, the JCB-TH33013 is a quick-lift trolley jack, which will save you precious time and effort in comparison to a single-piston counterpart. The JCB-TH33013 is also equipped with durable swivel rear wheels and a saddle to provide smooth manoeuvring and positioning of the jack, while its integrated protection rubber pad will protect vehicles from getting scratched and damaged during lifting.
Features:
3 Tonne Maximum Load Capacity.
Maximum Height 505mm.
Minimum Height 75mm.
Double-piston, quick-lift feature saves you time and effort when pumping up the trolley jack.
Extra low-profile design allows the jack to reach lower clearances, beneficial for sports cars or vehicles with reduced ground clearance.
Protection Rubber Pad: Includes a pad to protect the vehicle from scratches or damage during lifting.
Heavy-Duty steel construction provides stability and endurance.
Swivel rear wheels provide smooth maneuvering and positioning.
Swivel saddle provide smooth manoeuvring and positioning.
Built-in safety valve protects against jack overloading.
Hydraulic oil by-pass system protects ram from being over-extended.
Net Weight 35.2kg.
Product Specification:
Part Number: JCB-TH33013
Barcode: 5056485718140
Brand: JCB
Height Min (mm): 75
Height Max (mm): 505
Lifting Capacity (T): 3
Net Weight (kg): 35.2
Gross Weight (kg): 37
Dimensions H x W x L (mm): 156 x 353 x 738
Packaging Dimensions H x W x L (mm): 205 x 370 x 805
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
