Belle BMD01T BMD-300 Heavy-Duty Mini Dumper – Wide-Tire Design for Enhanced Stability and Versatility

Description

• Wide Tires
• Powerful Engine
• Heavy-Duty Design
• Compact and Ergonomic
• High-Grade Components

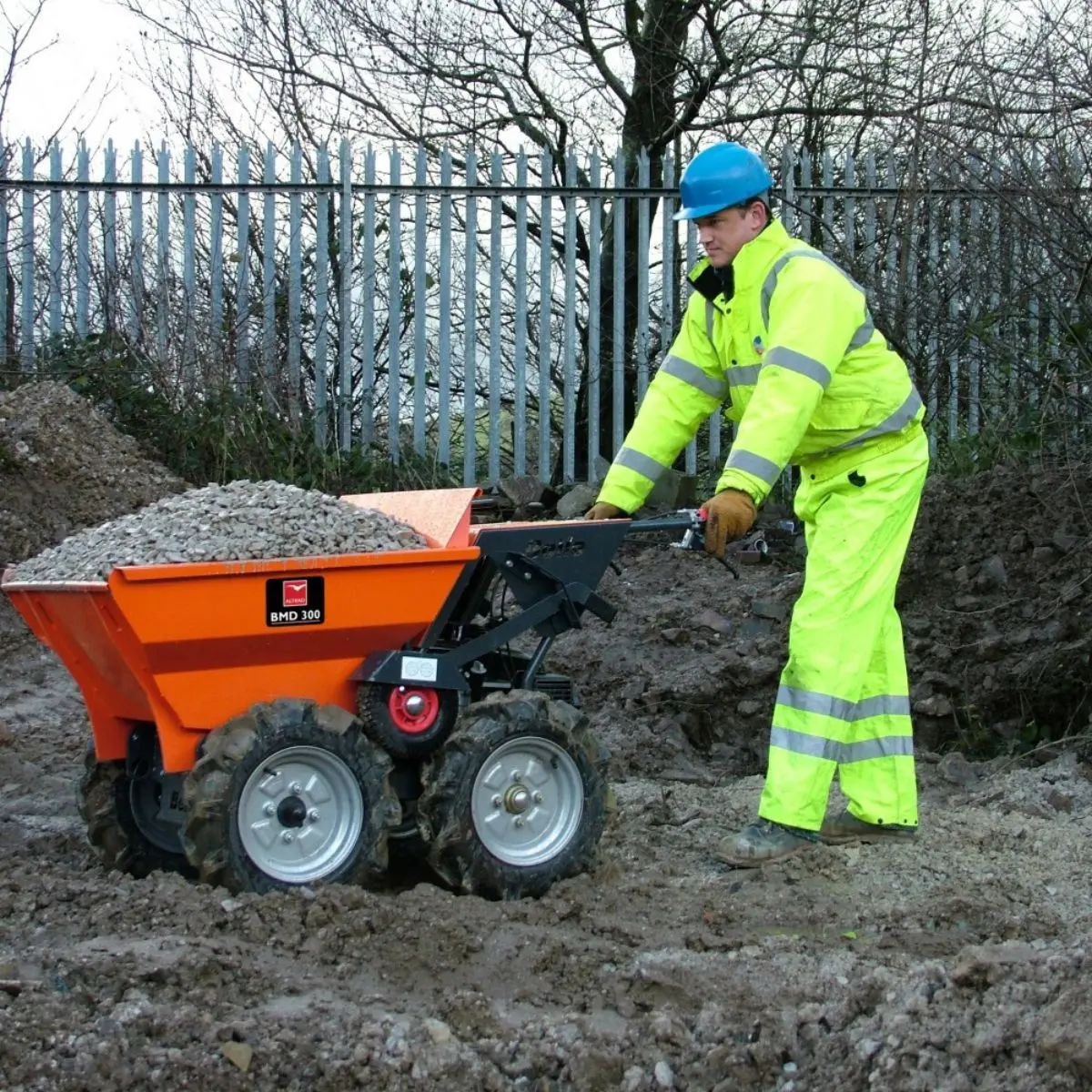

Belle BMD01T BMD 300 Mini Dumper with Wide Tires Heavy-Duty, Versatile & Easy to Control

The Belle BMD01T BMD 300 Mini Dumper with wide tires is designed for high-performance and versatility in various construction and landscaping tasks. Engineered with a robust heavy-duty build, this mini dumper effortlessly handles loads up to 300kg, making it ideal for demanding jobs.

Features:

Heavy-Duty Design: The BMD 300’s robust construction and efficient tipping mechanism handle loads up to 300kg effortlessly.
Climbing Ability: Capable of ascending inclines of up to 20 degrees.
4-Wheel Drive & Removable Center Wheel: Offers four-wheel drive for enhanced traction and a removable center wheel for easy maintenance.
Ergonomic Design: Combines speed and high productivity, making it versatile for various applications.
Compact Size: Ideal for tight spaces; easily navigates doorways and confined areas.
Maneuverability: Designed for smooth movement on slopes and easy turning.
Gearbox & Brakes: Features a 4-forward-gear gearbox, reverse gear, and disc brakes for reliable operation.
Multipurpose Tires: Equipped with four versatile tires for different terrains.
Speed & Flexibility: Faster and more adaptable than track-driven dumpers.
Flatbed Mode: Quick conversion to flatbed mode for added versatility.
Optional Loading Ramp: Foldable ramp available for easy transport.
High-Grade Components: Built with premium materials meeting the latest quality standards.
European Standards Compliance: Designed to adhere to the latest health and safety regulations.
User-Friendly: Maximizes operator productivity with easy access to controls and service points.
HONDA Engine: Powered by the HONDA GXV160 / 5.5Hp industrial engine, meeting the latest anti-pollution standards.
Safety Features: Includes a parking disc brake for added security.
4-Wheel Drive Engagement: Center wheel engages four-wheel drive for better performance on rough terrain.
Efficient Tipping: Lower skip position enables quick, strain-free tipping.
Balanced Design: Maintains stability even with a full load.
Uniform Wheels: All four wheels are the same size for easy replacement.
Enhanced Durability: Additional bearings and a strengthening plate support the axle.
Bottom Protection Plate: Shields against damage from stones.
Low Maintenance: Designed for minimal upkeep.

Product Specification:

Part no: BMD01T
Barcode: 5031403700087
Model: BMD 300 c/w Flotation Turf Tyres
Motor Power (Hp/kW): Honda Petrol GXV160 4.4 / 3.2
Fuel Tank Capacity (Ltr): 2.5
Max. Travel Speed – Fwd (km/h): 6
Max. Travel Speed – Rev (km/h): 2.6
Skip Capacity – Level Filled (litres): 113
Skip Capacity – Heaped (litres): 134
Max. Payload (kg): 300
Dimensions W X H X L (mm): 1004 x 934 x 1609
Weight (kg): 195

**images for illustrative purposes only – please refer to description and specification for full details of product**
